نموذج لا.:FP2 48 فولت تيار مستمر 208 فولت تيار متردد 3 مراحل 96 كيلو وات
سعة:96 كيلو واط
حاضِر:2000 أ
مقومات:فلات باك 2 48/3000 شي
وحدة تحكم:الحزمة الذكية2
أبعاد مجلس الوزراء:2000 * 600 * 600 ملم
سعة كل خليج:96 كيلو واط
جهد المدخلات:3 المرحلة 208Vac
العلامة التجارية Breaker:ABB
طَرد:حزمة خشبية
إبراز:
High capacity telecom power system,Custom 48Vdc power plant,390V input telecom power supply
,
Custom 48Vdc power plant
,
390V input telecom power supply
معلومات اساسية
مكان المنشأ:الصين
اسم العلامة التجارية:OEM
رقم الموديل:FP2 48 فولت تيار مستمر 208 فولت تيار متردد 3 مراحل 96 كيلو وات
شروط الدفع والشحن
تفاصيل التغليف:pacakge خشبية
وقت التسليم:8-10 أسابيع
القدرة على العرض:500 مجموعة في الشهر
صالة عرض

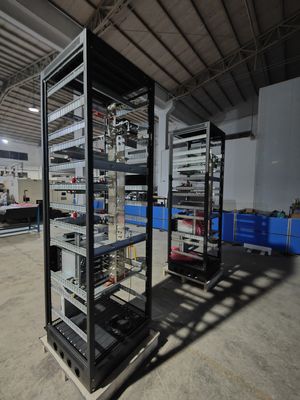

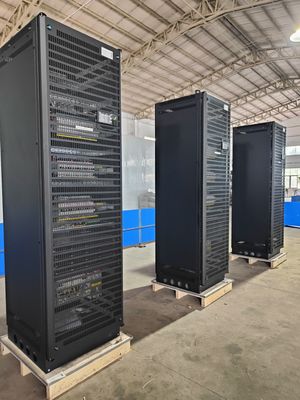

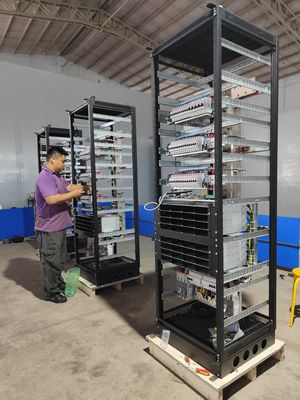

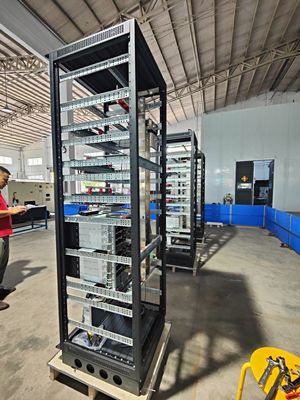

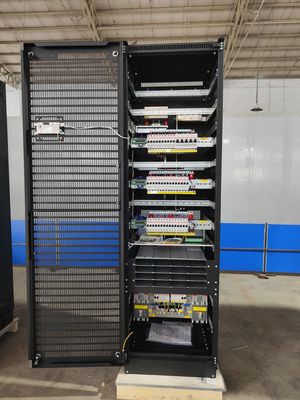

High capacity Power Plant -48Vdc 1000A 2000A 3000A Custom Made 390V 208V input 48Vdc output power system
منتوج وصف
96KW 2*3ph 208V SPD BD
Cabinet size: H2000*W600*D650mm (Included front door, IP20 cabinet,
AC bottom in cables, DC top out cables)
System Capacity 48V 96KW, Max 32 pcs 3000W SHE rectifier slots
Controller: Smartpack2 6+6 I/O,10m temperature sensor
AC Input 2*3*ph 208VAC (3L+N+PE),Input Mains breaker (ABB):
2*C200/3P MCCB with 2 * TYPE 2 SPD (ABB)
2000Amp LVBD
All configuraiton can be custom made
Product Name
-48Vdc indoor bay systems
Rectifeir Models
Flatpack2 48/3000 SHE
Controller Models
Smartpack2
Max Capacity
96KW capacity per cabinet /
Max current
2000A
Cabinet dimensions
2000*600*600mm
OEM design
Accetpable
