Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers

1
MOQ
Inquiry
السعر
Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
نموذج: NetCol8000-C150D
نوع التدفئة الكهربائية: PTC
وزن الوحدة (كجم): 295
سعة التبريد: يختلف حسب الطراز، عادةً من 5 كيلو واط إلى 50 كيلو واط
المرطب: 8
نقطة البيع: درجة الحرارة والترطيب باستمرار
حجم الهواء: 6000m3/ساعة
دقة الرطوبة: ± 1.5٪
ضمان: سنة واحدة
مستوى مرشح الهواء: G4
حجم الوحدة: 760*550*1900
نقاط البيع الرئيسية: توفير الطاقة
تقرير اختبار الآلات: متاح
شكل المروحة: مروحة EC
ضاغط الكمية: 2 قطعة
فلتر: فلتر الهواء G4
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: HUAWEI
رقم الموديل: NetCol8000-C150D
شروط الدفع والشحن
تفاصيل التغليف: كرتونة خشبية
وقت التسليم: 5-8 أسابيع
شروط الدفع: تي/تي
القدرة على العرض: 500 مجموعات شهريا
منتوج وصف
Description

Huawei NetCol8000-C150D is a 150kW chilled water room-level precision air conditioner specially developed by Huawei for medium and large data centers, IDC computer rooms, financial disaster recovery centers and operator base stations. It focuses on high-efficiency refrigeration, intelligent temperature control, high-reliability operation and maintenance, and green energy saving. It perfectly meets the constant temperature and constant humidity environmental requirements of high-density IT equipment, and is the core temperature control choice for data center infrastructure.

Appllcation

Medium & large data centers, IDC/EDC computer rooms, cloud computing centers

Financial institution headquarters, disaster recovery centers, bank trading computer rooms

Telecom core computer rooms, provincial-level base data centers

Government cloud, smart city and safe city data computer rooms

Key business computer rooms in energy, medical treatment, education and other industries


Specification

  • Rated Cooling Capacity: 150kW (Chilled Water Type)
  • Air Volume: 13750m³/h
  • Fan Type: EC Variable-frequency Centrifugal Fan
  • Humidification Type: Wet Membrane Humidification 7kg/h
  • Electric Heating: PTC Heating 12kW
  • Power Supply: 380-480V / 3Ph / 50-60Hz
  • Dimension (W×D×H): 1200mm×850mm×2000mm
  • Weight: Approx. 360kg
  • Air Supply Mode: Downflow, Room-level Installation

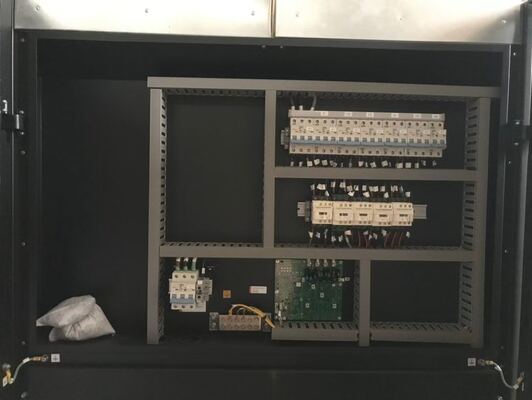

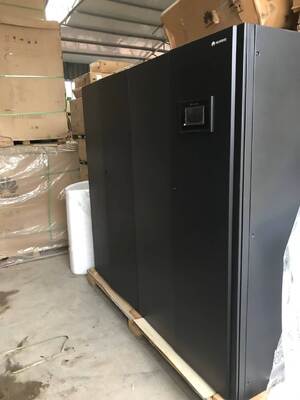

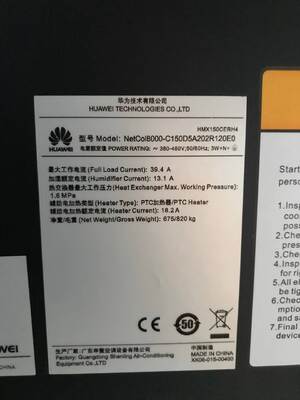

Product Display

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 0

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 1

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 2

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 3Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 4

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 5


Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 6

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 7
